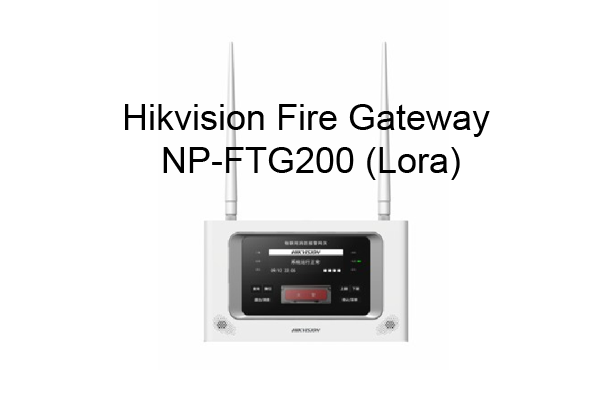

Hikvision Fire Alarm Sysyem Wireless – Fire Gateway NP-FTG200 (Lora)

Description

Hikvision Fire Alarm System Wireless Gateway

Fire Gateway(Lora)
128 wireless peripherals, 2 IO outputs
2km in open space, self-adaptive frequency hopping communication
AES128 encryption, anti-collision,
Built-in buzzer (75dB @1m)
Signal strength indicator, easy to install
LoRa/wired communication method
Manual fire alarm button, self-test, reset, silence
4000 logs for alarms, faults, and operations each
RS232, RS485
The main/battery power auto switch, the battery power Support 14 hours of normal work

——————————————

Number of peripherals: 128 wireless peripherals;
Interrelationship: Supports signals between hosts;
LoRa wireless communication distance: 1.5-2km for open spaces, 3-5km ordinary walls and 1-2km heavy walls, 1km basement;
Chinese LCD display;
Communication security: AES128 dynamic encryption, anti-replay, frequency allocation conflict prevention;
Alarm sound pressure: 75dB, 1m front (A-weighted);
Functions: Alarm query, tamper alarm, fire alarm, jammer function, reset function, under-voltage alarm, self-assessment test;
Peripheral search: association information between peripherals and Internet side gateways;
Log storage: 4000 alarms, faults and operations;
User management: Installer, Administrator, Operator;
Interfaces: RS-232*1, RS-485*1, Ethernet RJ45*1, relay output*2, relay power DC 30V/1A, auxiliary power interface DC 12V 500mA;
Communication methods: Ethernet, LoRa 470MHz~510MHz;
Main power: 12V power adapter; Backup power: 2500mAh, 7.2V;
Working temperature -10℃~55℃;
Working humidity ≤95%;
Dimensions: 228mm(L)*134mm(W)*36mm(H);
Shell material: PC+ABS;
Product weight 600g;
Installation: indoor
